Apache JMeter - Testing RESTful WebServices

In this Tutorial let us see how to use Apache's JMeter to test the RESTful WebServices we developed in my previous post RESTful-web-service-with-spring-3x

1. Download JMeter Click here to download
2. This version requires Java 6 or later
3. Create a Thread Group and give a name, e.g "RestServiceTestingGroup"

4. Set "Number of Threads (Users)" to 5
5. Set "Ramp-up period (in seconds) to 1
6. Set "Loop Count" to 2

7. Right Click on RestServiceTestingGroup and choose Add->Sampler->HTTP Request

8. Give "getStockInformation" as Name
9. Set "localhost" in the "Server Name or IP" field
10. Give 8080 as "Port Number" value
11. Set "http" as Protocol
12. Choose "Post" as Method
13. Type "stock-service-war/stockService/getStockInformation" in the "Path" field
14. Open the "Body Data" Tab and paste the following XML
<?xml version="1.0" encoding="UTF-8" standalone="yes"?><stockRequest xmlns="http://com.mycompany.model.demo/stockRequest" xmlns:ns2="http://com.mycompany.model.demo/stockResponse"><stockSymbol>AAPL</stockSymbol><stockSymbol>GOOG</stockSymbol><stockSymbol>IBM</stockSymbol></stockRequest>

15. Right Click on RestServiceTestingGroup and choose Add->Listener->View Results Tree

16. Type "stockInfoServiceResult" in the Name field
17. Right Click on RestServiceTestingGroup and choose Add->Config Element->HTTP Header Manager

18. Leave the Name field as it's, if you want you can give a name
19. Clikc on "Add" button at the bottom
20. Type "Content-Type" in the "Name" field and "application/xml" in the Value field

21. Right Click on RestServiceTestingGroup and choose Add->Listener->View Results in Table

22. Now Click on "Start" button

23. To see the Request/Response Click on the "stockInfoServiceResult" on the Left navigation, click on the "getStockInformation" on the Right side panel and open "Request" & "Response" Tabs on the Right side

24. To see Timing statistics click on the "View Results in Table" on the Left navigation bar, this View shows How many times the service is invoked, What is the time taken for each service call, What is the average time of service call etc..



25. To get the JSON response from the Service choose "HTTP Header Manager" on the Left panel, Click the "Add" button on the bottom right side, Type "accept", "applicatoin/json" respectively in the Name and Value fields

26. Now hit the "Start" button, you can clear the existing results by clicking on "Clear" & "Clear All" buttons on the Tool Bar. The "stockInfoServiceResult" shows the JSON Response

RESTful Web Service with Spring 3.x

In this Article let us see how to develop a RESTful Web Service with Spring 3.x

Tools I used:

1. Eclipse 4.4 (Luna)
2. jdk1.7.0_45
3. apache-maven-3.2.1
4. apache-tomcat-7.0.47

The requirement:
Write a Restful Webservice which accepts a list of Stock symbols and return the following for each of them
1. Stock Name
2. High Price
3. Low Price
4. Closing Price
5. Volume
6. Change in Price
6. Change in Percentage

Step 1:
1.1 Create a Java Project using the Maven command given below. This is where we are going to define the XSDs for input and output of the Service.
mvn archetype:generate -DgroupId=com.mycompany.model.demo -DartifactId=stock-model-jar -DarchetypeArtifactId=maven-archetype-quickstart -DinteractiveMode=false
1.2 Switch to the folder stock-model-jar and run "mvn clean install" followed by "mvn eclipse:eclipse"
1.3 Import the Project stock-model-jar into Eclipse Workspace

1.4 Create a folder called xsd under src/main
1.5 Create two XSDs viz stockRequest.xsd & stockResponse.xsd
1.6 Add the following in the pom.xml

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.7</source>
                    <target>1.7</target>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>jaxb2-maven-plugin</artifactId>
                <version>1.6</version>
                <executions>
                    <execution>
                        <id>xjc-schema2</id>
                        <goals>
                            <goal>xjc</goal>
                        </goals>
                        <configuration>
                            <!-- <schemaFiles>src/resources/xsd</schemaFiles> -->
                            <packageName>com.mycompany.model.demo.oxm</packageName>
                            <clearOutputDir>false</clearOutputDir>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

1.7 Execute the commands "mvn clean install", this generates Annotated Jaxb classes. The generated classes could be found under <your-workspace>\stock-model-jar\target\generated-sources\jaxb\com\mycompany\model\demo\oxm. The classes also bundled in the jar file.

Link to Source code

Step 2: Setting up the Spring MVC Web Application
2.1 Create a Maven Web application project called "stock-service-war" using the command
mvn archetype:generate -DgroupId=com.mycompany.rest.demo   -DartifactId=stock-service-war   -DarchetypeArtifactId=maven-archetype-webapp   -DinteractiveMode=false
2.2 Open the pom.xml and add the following

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>${spring.version}</version>
        </dependency>
        <!-- Contains the required class for writing Controller -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- Contains the DispatcherServlet -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- The jars required for the Marshaller -->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-oxm</artifactId>
            <version>${spring.version}</version>
        </dependency>

        <!-- For JSON support -->
        <dependency>
            <groupId>org.codehaus.jackson</groupId>
            <artifactId>jackson-core-asl</artifactId>
            <version>${codehaus.jackson.version}</version>
        </dependency>
        <dependency>
            <groupId>org.codehaus.jackson</groupId>
            <artifactId>jackson-mapper-asl</artifactId>
            <version>${codehaus.jackson.version}</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-core</artifactId>
            <version>${com.jackson.core-version}</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-annotations</artifactId>
            <version>${com.jackson.core-version}</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>${com.jackson.core-version}</version>
        </dependency>

        <!-- The Model jar which contains the classes for the XML schema -->
        <dependency>
            <groupId>com.mycompany.model.demo</groupId>
            <artifactId>stock-model-jar</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>

        <!-- Servlet API -->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.0.1</version>
        </dependency>
        <dependency>
            <groupId>commons-logging</groupId>
            <artifactId>commons-logging</artifactId>
            <version>1.1</version>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.17</version>
        </dependency>
    </dependencies>
    <build>
        <finalName>stock-service-war</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-eclipse-plugin</artifactId>
                <configuration>
                    <wtpmanifest>true</wtpmanifest>
                    <wtpapplicationxml>true</wtpapplicationxml>
                    <wtpversion>2.0</wtpversion>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.7</source>
                    <target>1.7</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
    <properties>
        <spring.version>3.2.12.RELEASE</spring.version>
        <com.jackson.core-version>2.4.3</com.jackson.core-version>
        <codehaus.jackson.version>1.6.0</codehaus.jackson.version>
    </properties>

2.3 Switch to the directory stock-service-war and run "mvn clean install" followed by "mvn eclipse:eclipse"
2.4 Import the Project stock-service-war into Eclipse Workspace
2.5 If you have configured Web servers such as Apache Tomcat in your Eclipse just deploy the project and you could see the index.jsp rendered while invoking http://localhost:8080/stock-service-war/
2.6 Edit the web.xml and configure Spring MVC Servlet as follows

   <servlet>
      <servlet-name>stockSDispatcher</servlet-name>
      <servlet-class>
         org.springframework.web.servlet.DispatcherServlet
      </servlet-class>
      <load-on-startup>1</load-on-startup>
   </servlet>
   <servlet-mapping>
      <servlet-name>stockSDispatcher</servlet-name>
      <url-pattern>/</url-pattern>
   </servlet-mapping>

2.7 Create a file called "stockSDispatcher-servlet.xml" under the directory WEB-INF. The file name should be <Spring MVC Servlet name given in web.xml>-servlet.xml

2.8 Copy the following into stockSDispatcher-servlet.xml

   Note the following classes are generated in the Step 1.7
    <bean id="jaxb2marshaller" class="org.springframework.oxm.jaxb.Jaxb2Marshaller">
        <property name="classesToBeBound">
            <list>
                <value>com.mycompany.model.demo.oxm.StockRequest</value>
                <value>com.mycompany.model.demo.oxm.StockInfo</value>
                <value>com.mycompany.model.demo.oxm.StockResponse</value>
            </list>
        </property>
    </bean>

2.9 Create a folder java under src/main and add this as a Source Folder by going to "Java Build Path" settings
2.10 Create a package "com.mycompany.rest.demo.controller" and a class in it called "StockServiceController.java"
2.11 Add the following into the Controller class

package com.mycompany.rest.demo.controller;

import java.io.ByteArrayOutputStream;
import java.util.ArrayList;
import java.util.List;

import javax.servlet.http.HttpServletRequest;
import javax.xml.transform.stream.StreamResult;

import org.apache.log4j.Logger;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.oxm.jaxb.Jaxb2Marshaller;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import com.mycompany.model.demo.oxm.StockInfo;
import com.mycompany.model.demo.oxm.StockRequest;
import com.mycompany.model.demo.oxm.StockResponse;

/**
 * @author TAMILMANI, BALAMURUGAN
 *
 */
@Controller
@RequestMapping(value = "/stockService")
public class StockServiceController {


    private static final Logger LOGGER = Logger.getLogger(StockServiceController.class);
    @Autowired
    private HttpServletRequest request;

    @Autowired
    private Jaxb2Marshaller jaxb2Marshaller;

    /**
     * @param stockRequest The Request XML automatically converted into Object graph by framework
     * @return ModelAndView object which contains the Model to be marshalled by framework
     */
    @RequestMapping(value = "/getStockInformation")
    public @ResponseBody StockResponse getStockInfo(@RequestBody StockRequest stockRequest) {
        //Log the Request
        logInputOutput(stockRequest, "REQUEST");

        //Retrieve the response
        StockResponse stockResponse = getStockResponse();
        //Log the Response data
        logInputOutput(stockResponse, "RESPONSE");

        return stockResponse;
    }

    /**
     * @return The StockResponse Object graph
     */
    //This Response is retrieved from Service layer in Real time
    private StockResponse getStockResponse(){
        StockResponse stockResponse = null;
        List<StockInfo> stockInfoList = null;
        StockInfo stockInfo = null;

        stockResponse = new StockResponse();
        stockInfoList = new ArrayList<StockInfo>();
        stockInfo = new StockInfo();
        stockInfo.setStockSymbol("AAPL");
        stockInfo.setStockName("Apple Inc");
        stockInfo.setHigh(112.7d);
        stockInfo.setLow(112);
        stockInfo.setClose(112);
        stockInfo.setVolume(14479600);
        stockInfo.setChangeInPrice(0.53);
        stockInfo.setChangeInPercentage(0.47);
        stockInfoList.add(stockInfo);

        stockInfo = new StockInfo();
        stockInfo.setStockSymbol("GOOGL");
        stockInfo.setStockName("Google Inc");
        stockInfo.setHigh(540.3d);
        stockInfo.setLow(535.1);
        stockInfo.setClose(536.9);
        stockInfo.setVolume(737800);
        stockInfo.setChangeInPrice(1.84);
        stockInfo.setChangeInPercentage(0.34);
        stockInfoList.add(stockInfo);

        stockInfo = new StockInfo();
        stockInfo.setStockSymbol("IBM");
        stockInfo.setStockName("International Business Machines Corp");
        stockInfo.setHigh(163);
        stockInfo.setLow(161.6);
        stockInfo.setClose(161.8);
        stockInfo.setVolume(1869900);
        stockInfo.setChangeInPrice(0.42);
        stockInfo.setChangeInPercentage(0.26);
        stockInfoList.add(stockInfo);

        stockResponse.getStockInfo().addAll(stockInfoList);
        return stockResponse;
    }

    /**
     * @param graph The Object graph to be marshalled
     * @param dataIndicator Indicates whether Request or Response
     */
    private void logInputOutput(Object graph, String dataIndicator){
        ByteArrayOutputStream byteArrayOutputStream = null;
        StreamResult streamResult = null;

        byteArrayOutputStream = new ByteArrayOutputStream();
        streamResult = new StreamResult(byteArrayOutputStream);
        jaxb2Marshaller.marshal(graph, streamResult);
        LOGGER.debug("Data::"+dataIndicator+"->"+byteArrayOutputStream.toString());
    }

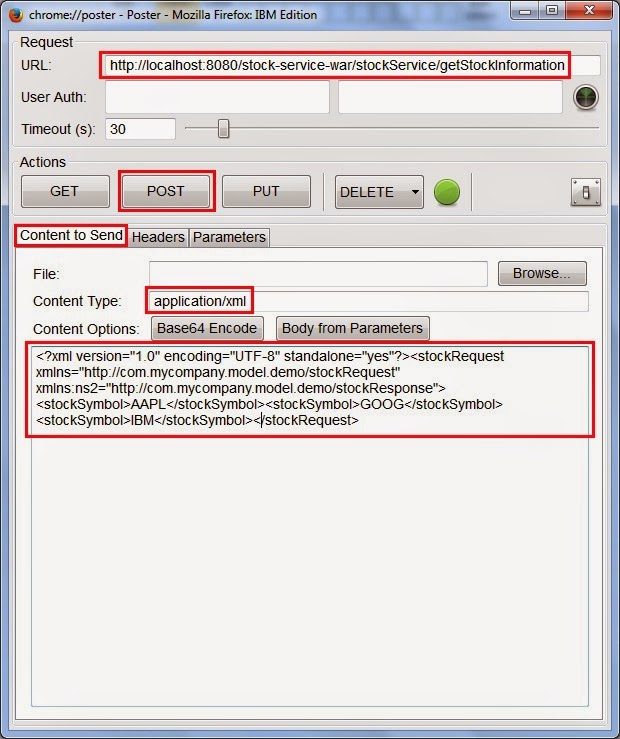

    //The URL of the service
    //http://localhost:8080/stock-service-war/stockService/getStockInformation

    //SAMPLE XML INPUT
    /*<?xml version="1.0" encoding="UTF-8" standalone="yes"?><stockRequest xmlns="http://com.mycompany.model.demo/stockRequest" xmlns:ns2="http://com.mycompany.model.demo/stockResponse"><stockSymbol>AAPL</stockSymbol><stockSymbol>GOOG</stockSymbol><stockSymbol>IBM</stockSymbol></stockRequest>*/

    //SAMPLE JSON INPUT
    //{"stockSymbol":["AAPL","GOOG","IBM"]}
}

2.12 Deploy the Application in the Tomcat server
Link to Source code

Testing:
1. Open the Poster plug-in (Tools->Poster or Ctrl+Alt+P), if installed already in Firefox
2. Paste the following URL in the URL field "http://localhost:8080/stock-service-war/stockService/getStockInformation"
3. Paste the following XML in the "Content to Send" Tab's Text Area

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<stockRequest xmlns="http://com.mycompany.model.demo/stockRequest" xmlns:ns2="http://com.mycompany.model.demo/stockResponse">
    <stockSymbol>AAPL</stockSymbol>
    <stockSymbol>GOOG</stockSymbol>
    <stockSymbol>IBM</stockSymbol>
</stockRequest>

4. Type "application/xml" in the "Content Type" Text field

5. Click on "Post" button. In this case the input is XML and the Output is XML as well

6. The following is the XML Response

Getting the JSON Response:
1. Open the "Headers" Tab
2. Type "accept" in the Name field, application/json in the Value field and Click on "Add/Change" button
3. Now click on "Post" button

4. The following is the JSON response

Submitting JSON Request:

1. Paste the following JSON input in the "Content to Send" Tab's Text Area

{"stockSymbol":["AAPL","GOOG","IBM"]}
2. Change the Content Type to "application/json"

3. Click on "Post" button
4. The "accept" header's value determines the Response format. If it's set to "application/xml" the service returns XML, if set to "application/json" then the service returns a JSON response.
